TENDA B6

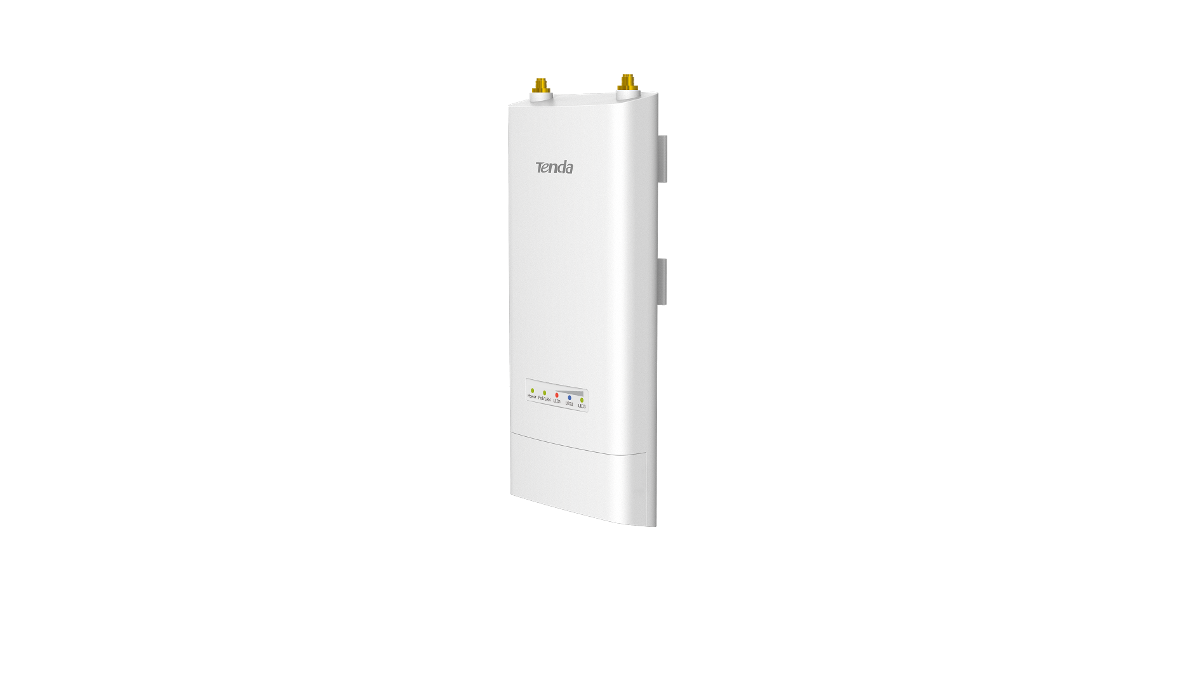

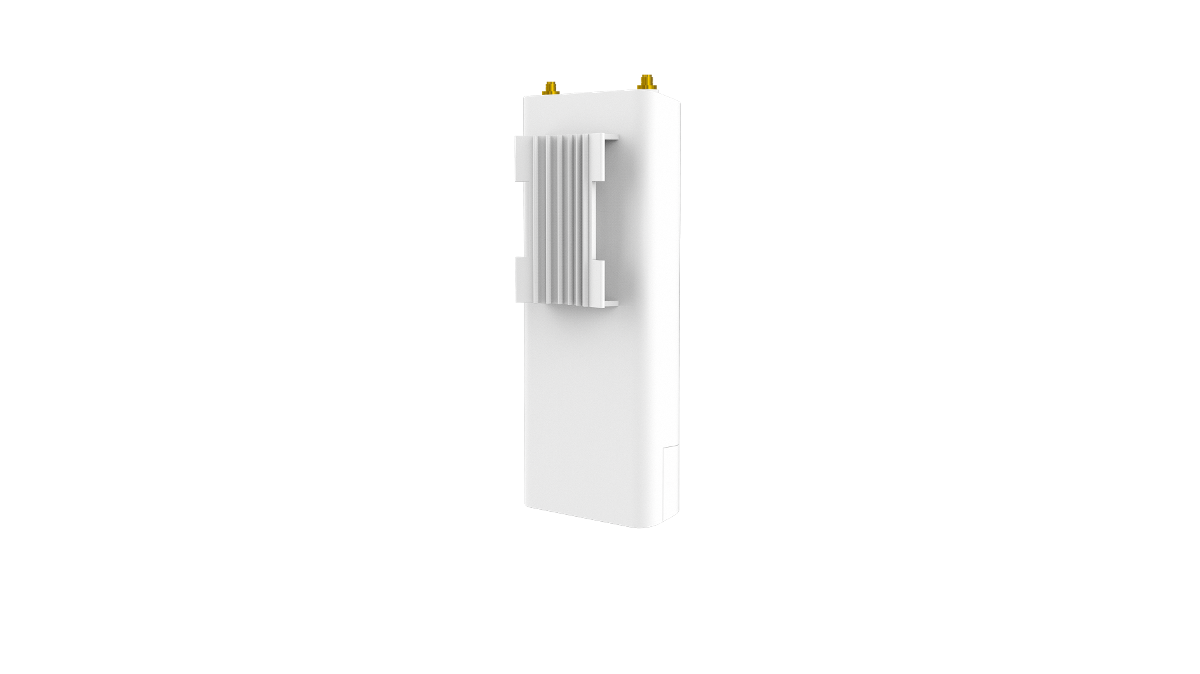

Access Point (แอคเซสพอยซ์) TENDA B6 Access Point Outdoor 5GHz 11n 300Mbps Basestation
- AP,Station,WISP operating mode supported
- 6000V Lightning Protection
- IP65 waterproof enclosure
- 2 RP-SMA Connector
- 5GHz 11n 300Mbps
B6 5GHz 11n 300Mbps Basestation is designed for PtP and PtMP solutions for rural wireless connectivity and CCTV surveillance.Features with two RP- SMA enable it to pair with dish antenna or sector antenna to establish PtP backhaul connection and P2MP link. It adopts Tenda TDMA (Time Division Multiple Access) proprietary protocol--TD-MAX to improve performance and capacity. The auto-bridging technology enable it easy to setup for both business and home users.
Frequency Range : 5GHz
Compliant Standards : EEE 802.11a/n
Maximum Wireless Rate : 300Mbps
Interfaces : 1*10/100Mbps Ethernet Port
Antenna : 2*RP-SMA Connector
GND : 1*GND
Reset Button : 1*Reset Button
Power Consumption : 8.5W
Waterproof Level : IP65
LED Indicator : Power, PoE/LAN,LED1,LED2,LED3
Power Method : 24V0.5A Passive PoE
Lightning Protection : 6000V
Passive PoE :
Passive power over ethenet via PoE/LAN ( +4,5pins,-7,8pins)
Voltage range: 21-25V DC
Reception Sensitivity :
11a 6Mbps -96dBm±1.5dBm
11n MCS0: -96±1.5dBm
11n MCS7: -72±1.5dBm
Dimension : 190*84*37mm
Deployment : Pole Mount
Application Scenarios : PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Operation Temperature : -30℃ ~ 60℃
Storage Temperature : -40℃ ~ 70℃
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 10%~90% non-condensing
Default login IP : 192.168.2.1
Default Login Username : admin
Default Login Password : admin
Certification : FCC/CE/RoHS
Package Contents :
1*5GHz 11n 300Mbps wireless basestation B6
1*PoE Power Adapter
1*Power cord
1*Quick Installation Guide
|
|
|
|
