| TP-LINK SX3832MPP Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++

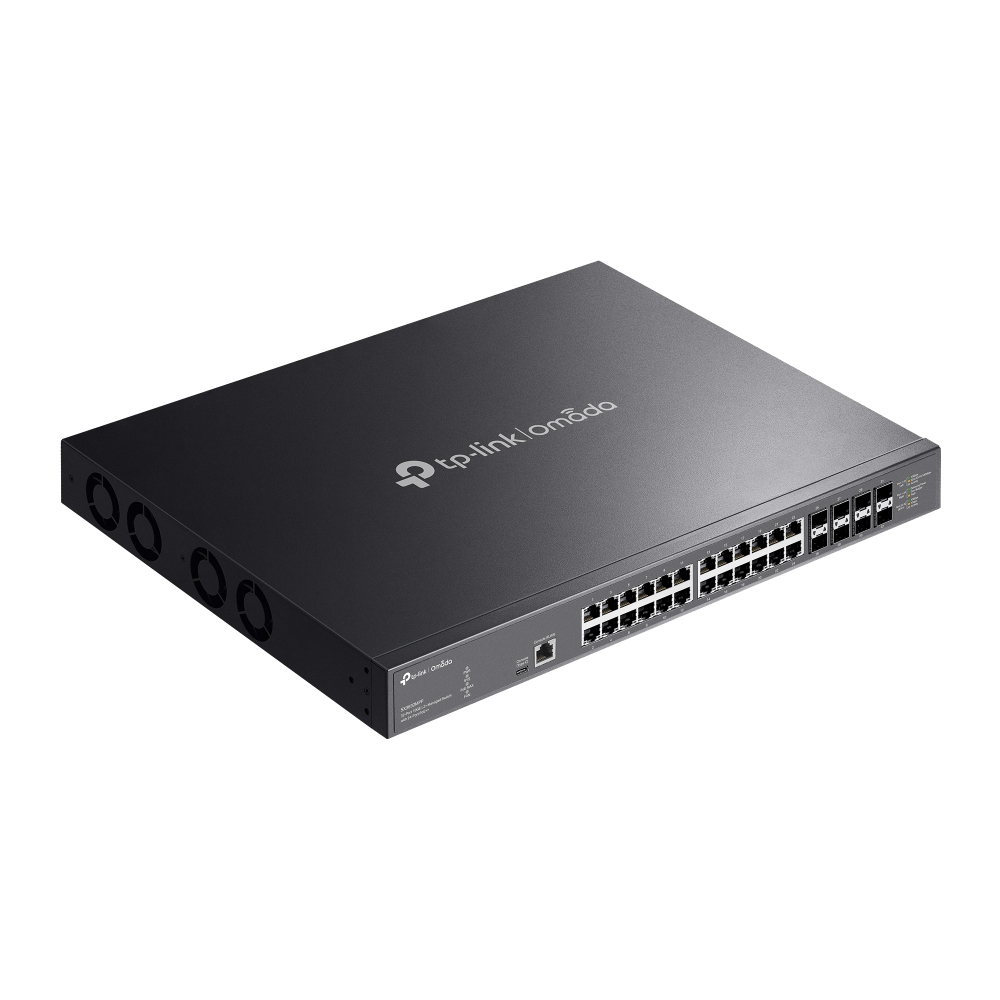

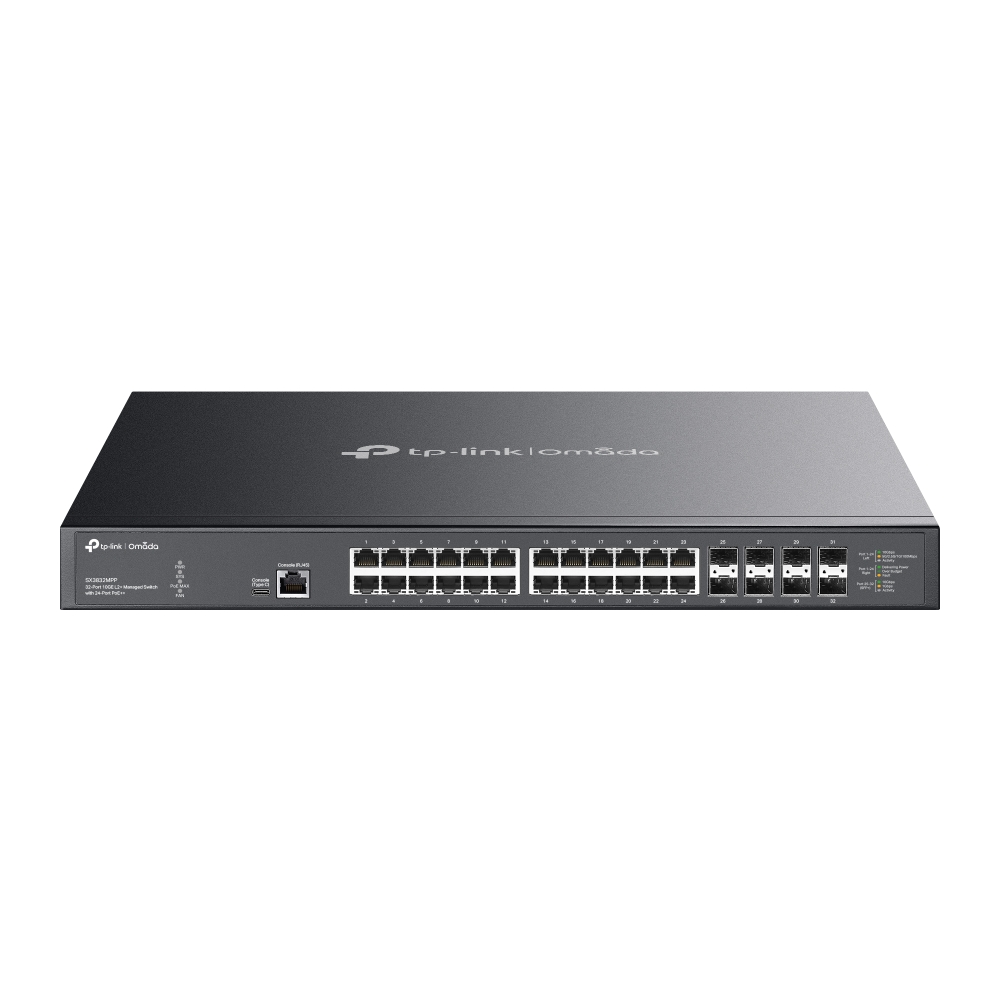

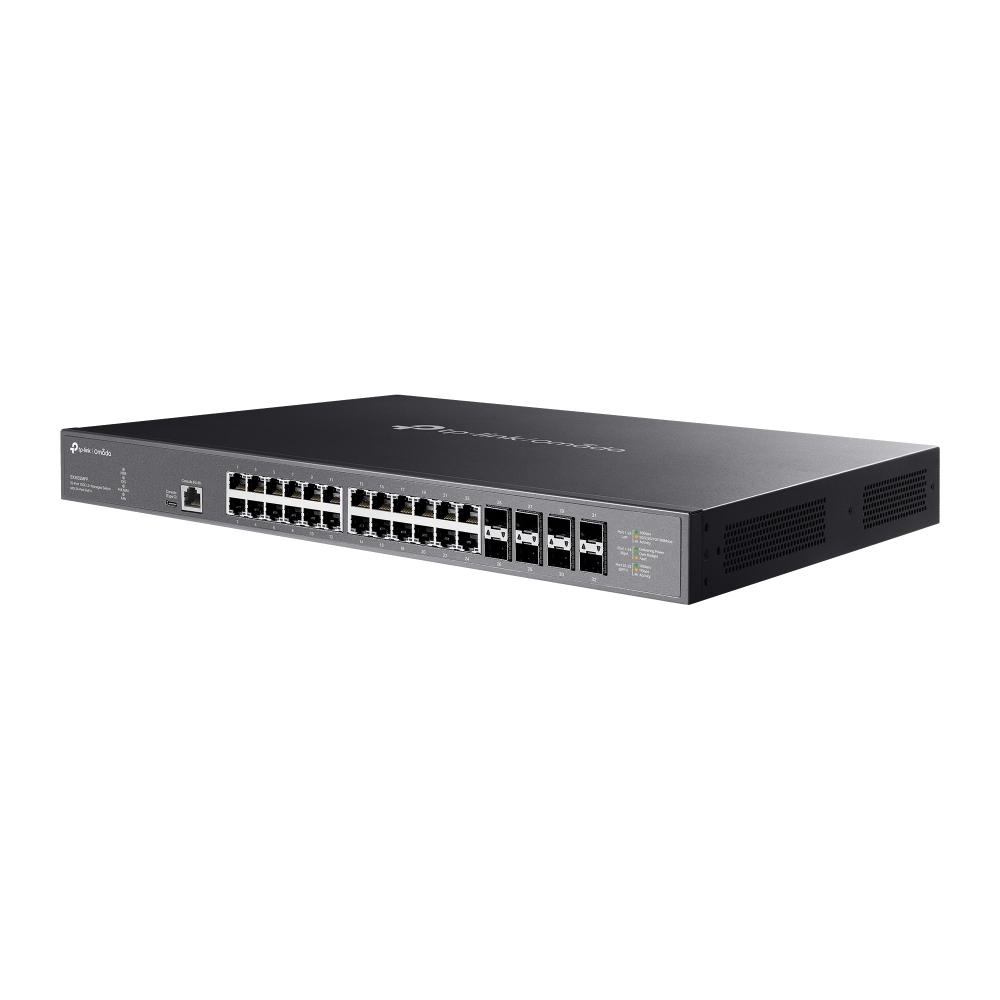

TP-LINK SX3832MPP Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
เพิ่มเมื่อ: 2025-05-10 13:45:40.0
แก้ไขล่าสุด: 2025-05-10 13:50:19.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) TP-LINK SX3832MPP Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
TP-LINK SX3832MPP
SWITCH (สวิตซ์) TP-LINK SX3832MPP Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
- 24× 1/2.5/5/10 Gbps RJ45 PoE++ ports
- 8× 1/10 Gbps SFP+ slots
- 770 W total PoE budget*, up to 90 W PoE out per port**
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Interface :
• 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• 8× 1/10G SFP+ Slots‡
• 1× RJ45 Console Port
• 1× USB Type C Console Port
Fan Quantity : 4
Physical Security Lock : √
Power Supply : 100-240 V AC~50/60 Hz
PoE Ports (RJ45) :
• Standard: 802.3bt/at/af compliant
• PoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port**
• Power Budget: 770 W*
Dimensions ( W x D x H ) : 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting : Rack Mountable
Max. Power Consumption :
1,010.2 W (110V/60Hz with 770 W PD connected)
953.7 W (220V/50Hz with 770 W PD connected)
Max Heat Dissipation :
3,444.7 BTU/hr (110V/60Hz with 770 W PD connected)
3,252.2 BTU/hr (220V/50Hz with 770 W PD connected)
Switching Capacity : 640 Gbps
Packet Forwarding Rate : 240 Mpps
MAC Address Table : 32 K
Packet Buffer Memory : 24 Mbit
Jumbo Frame : 9 KB
Omada App : Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management :
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access : Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning : Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features :
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Password Recovery
• SNTP
• System Log
